Product details
loading
Share to:

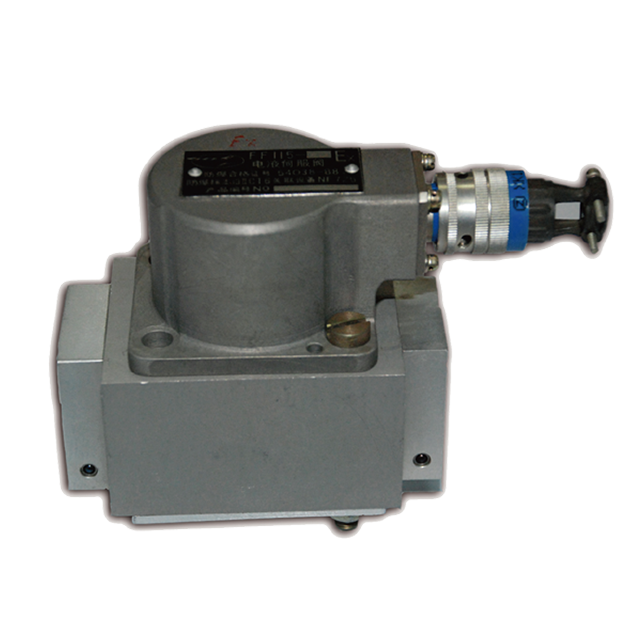

FF-115A series double nozzle flapper force feedback flow control EHSV
Availability:
Inquire
Product description
Previous:
Next:
